CNC Turning Services

CNC Turning Services China | ±0.01mm Precision | Fusort Machinery

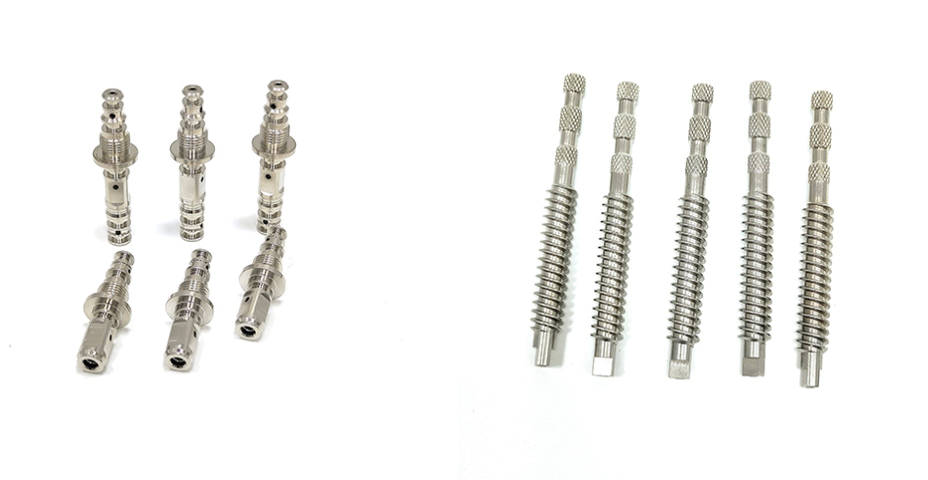

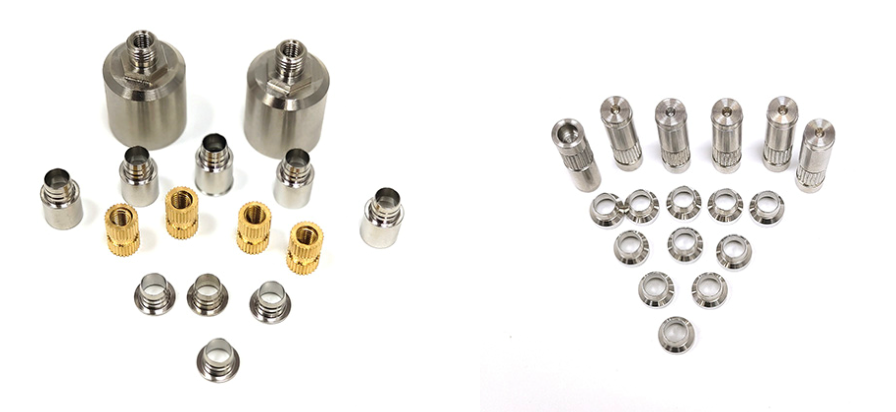

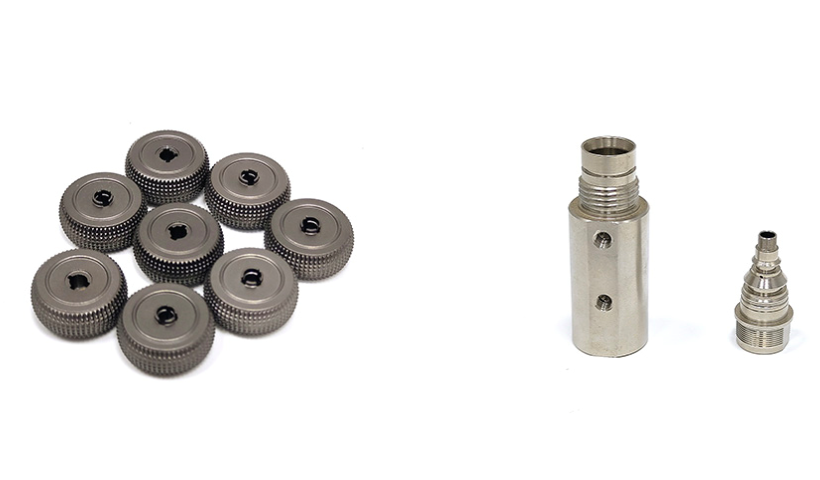

Fusort Machinery's CNC turning centers produce rotationally symmetric components — shafts, bushings, connectors, and fittings — with tolerances held to ±0.01mm across production volumes from single prototypes to hundreds of thousands of pieces.

Industry Pain Points & Our Solution

Buyers of turned components frequently run into two problems: tolerance drift across long production runs, and limited feature complexity when a part requires more than a simple rotational profile — cross-holes, flats, or keyways that a basic lathe cannot complete without a secondary operation.

Fusort Machinery's turning centers are equipped with live tooling and multi-axis capability, allowing turning, drilling, and milling operations to be completed in a single setup. This removes the repositioning error that causes tolerance drift between operations, and eliminates the need to route parts to a separate milling supplier for secondary features.

Technical Capabilities & Specifications

Process advantages:

• Multi-axis turning centers with live tooling for complex, multi-feature parts in a single setup
• Bar-fed automation for continuous high-volume production
• Sub-spindle back-working eliminates secondary handling
• Suitable for both large-diameter structural parts and small-diameter precision components

Uncompromising Quality Control

• 99.8%+ aggregate pass rate on turned components, verified through SPC sampling across every production batch
• 100% CMM inspection available for concentricity, roundness, and other critical rotational dimensions
• First-article inspection (FAI) documentation issued ahead of every production run
• Complete material traceability back to mill certification and heat lot number

Supply Chain Efficiency & Value

• JIT delivery scheduling synchronized to your line consumption rate
• VMI programs with automatic replenishment for turned part inventories
• 15%+ documented cost efficiency for customers on scheduled turning supply agreements

Frequently Asked Questions (FAQ)

Q: Can you machine thin-walled or tubular turned parts without distortion?

A: Thin-walled and tubular parts are prone to chucking distortion and out-of-roundness once released from clamping pressure. We control this using soft jaws matched to the part profile, reduced clamping force, and finish passes taken after stress relief — keeping wall thickness and roundness within tolerance.

Q: My part needs threads and a cross-hole — can that be done without a second supplier?

A: Yes — our turning centers include live tooling, so threading, drilling, and cross-features are completed in the same setup as the primary turning operation. This avoids the tolerance risk and added lead time of routing the part to a separate milling vendor.

Q: My part is long and thin — will it stay straight during turning?

A: Long, slender shafts are prone to deflection under cutting force, which affects concentricity. We use steady rests and optimized feed rates to support the workpiece along its length, keeping runout within tolerance even on high length-to-diameter parts.

Q: What's the maximum diameter and length you can turn?

A: Up to Ø400mm in diameter and 1,000mm in length, depending on part geometry and material. Parts near these limits should be reviewed with our engineering team to confirm tooling and fixture compatibility before quoting.

Q: What tolerance can you hold across a full production batch, not just one sample?

A: ±0.01mm is our standard achievable tolerance, verified through SPC sampling across every production batch rather than a single sample part, so it holds consistently from the first piece to the last in a run.

Q: Can you handle high-volume orders with consistent quality?

A: Yes — bar-fed automation supports continuous, unmanned production for high-volume orders, maintaining consistent cycle times and dimensional quality without manual part loading between cycles.

Contact Us

Fusort Machinery provides precision CNC Turning Services for prototyping and production. Send us your drawings, samples, or technical requirements — our engineering team will review your project and respond with a detailed evaluation and quotation.
